FOWLER BED SS PANEL

Category: Tags: , , , ,

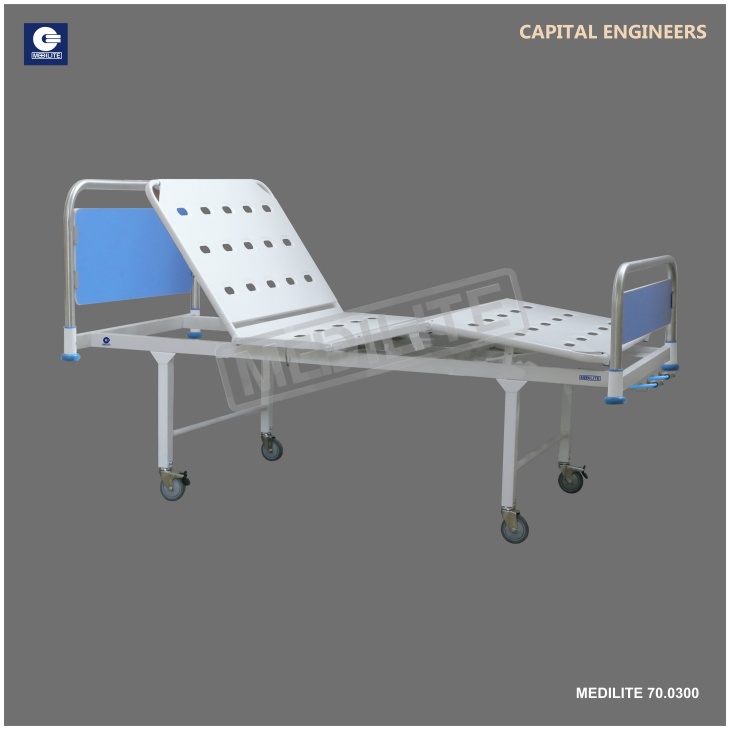

FOWLER BED SS PANEL — Model 70.0300

Fowler Bed SS Panel is an ergonomically designed, four section platform top that allows independent adjustment of the backrest (elevating up to 75°) and knee rest sections (elevating around 30° to 35°). these beds are critical in hospital wards, ICUs, and home patient care. By adjusting the frame, caregivers can place patients into various semi-upright angles to relieve respiratory distress, improve cardiac circulation, assist with feeding, and support post-operative recovery.

Key Features

  • Manual Positioning: Crank-operated backrest and knee rest elevation with folding handles.
  • Surface Platform: Uniformly perforated CRCA sheet top supported by a precision mild-steel tubular base and main frame.
  • Framework: Precision mild-steel tubular base and main frame.
  • Head and Foot Boards: Stainless steel bows with laminated panels.
  • Castors: “H” type legs mounted on 100 mm diameter swivel castors, two fitted with brakes.
  • IV Rod: Stainless-steel telescopic IV rod with four mounting locations.
  • Provisions: Provision to mount Saline rod on all four corners & provision to affix collapsible on the side of the bed.
  • Accessory: Urine bag holder.
  • Finish: Epoxy powder coating.

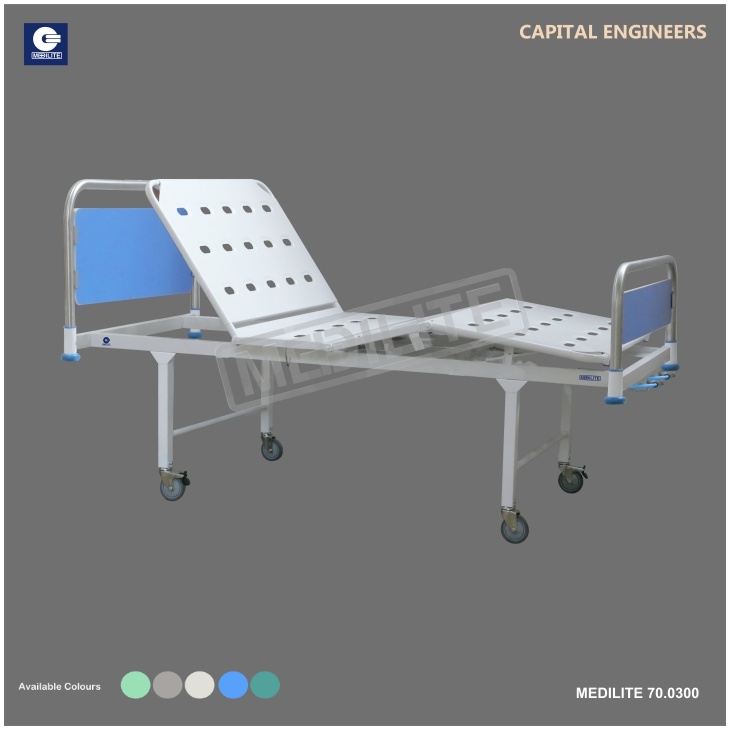

Available Colours

  • Mint Green, Light Greyish Brown, Teak Wood Seamless, Light Blue, and Dark Moderate Cyan.

Dimensions

  • Overall Size: 2010 mm (L) × 930 mm (W).
  • Fixed Height: 600 mm.
  • Suitable Mattress Size: 1980 mm (L) × 900 mm (W).
