ICCU BED

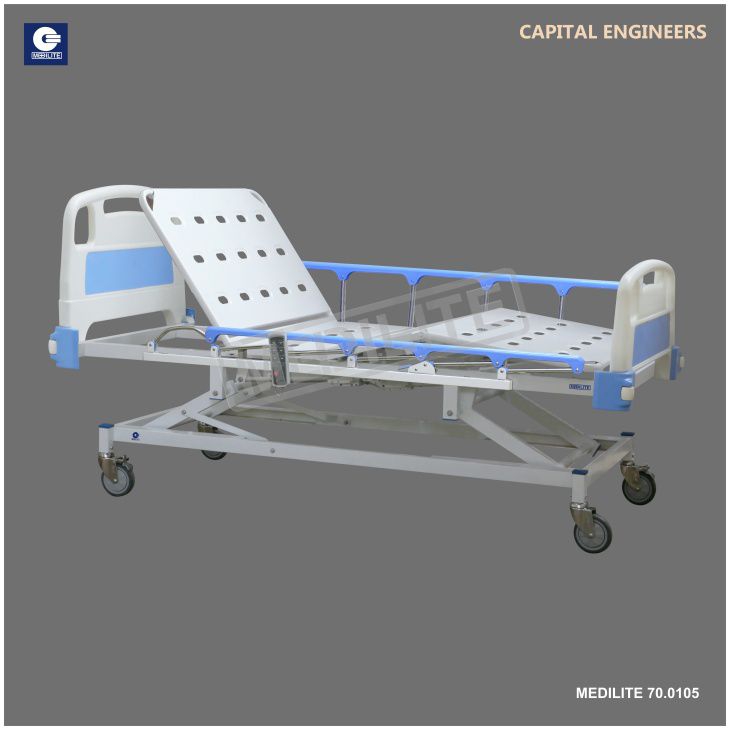

ICCU BED— Model 70.0105
ICCU Bed is a highly specialized medical bed designed for critically ill patients who require continuous monitoring, life-support integration, and precise therapeutic positioning.
Key Features
- Electric Positioning: Five remote-controlled functions for head/backrest elevation, leg-rest elevation, height adjustment, Trendelenburg, and reverse Trendelenburg.
- Surface Platform: Uniformly perforated CRCA sheet top supported by a precision mild-steel tubular base and main frame.
- Framework: Precision mild-steel tubular base and main frame.
- Castors: 125 mm diameter swivel castors, two fitted with brakes.
- Head and Foot Boards: Locking ABS-moulded head and foot boards.
- Side Rails: A pair of new design collapsible railing.
- IV Rod: Stainless-steel telescopic IV rod with four mounting locations.
- Accessory: Urine bag holder.
- Finish: Epoxy powder coating.
Dimensions
- Overall Size: 2150 mm (L) × 960 mm (W).
- Adjustable Height: 460–780 mm.
- Suitable Mattress Size: 1980 mm (L) × 900 mm (W).
