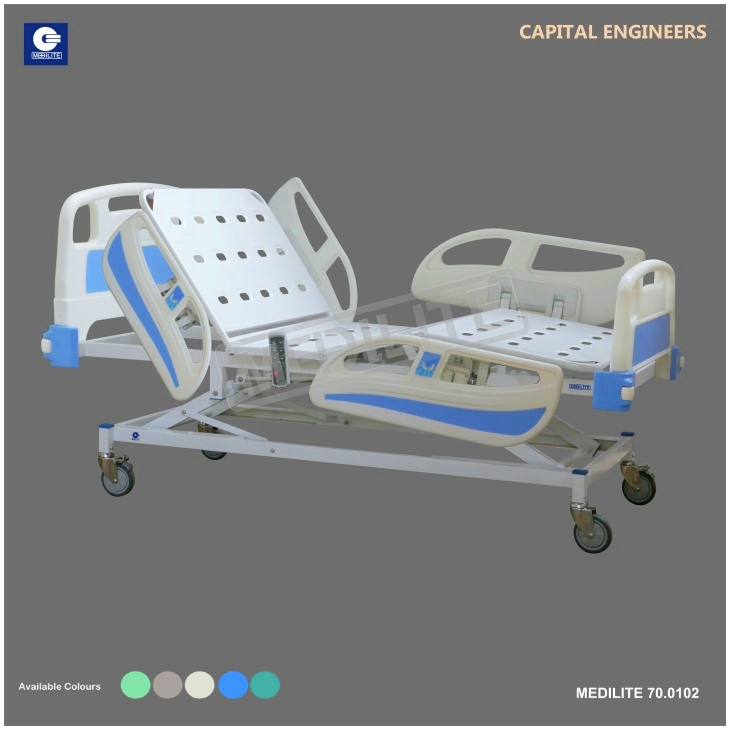

ICU BED FIVE FUNCTION

ICU BED FIVE FUNCHION — Model 70.0102

ICU Bed Five Funhion is a highly specialized medical bed designed for critically ill patients who require continuous monitoring, life-support integration, and precise therapeutic positioning.

Key Features

• Electric Positioning: Five remote-controlled functions for head/backrest elevation, leg-rest elevation, height adjustment, Trendelenburg, and reverse Trendelenburg.
• Surface Platform: Uniformly perforated CRCA sheet top supported by a precision mild-steel tubular base and main frame.
• Framework: Precision mild-steel tubular base and main frame.
• Castors: 125 mm diameter swivel castors, two fitted with brakes.
• Head and Foot Boards: Locking ABS-moulded head and foot boards.
• Side Rails: Four individual ABS-moulded side rails.
• IV Rod: Stainless-steel telescopic IV rod with four mounting locations.
• Accessory: Urine bag holder.
• Finish: Epoxy powder coating.

Available Colours

• Mint Green, Light Greyish Brown, Teak Wood Seamless, Light Blue, and Dark Moderate Cyan.

Dimensions

• Overall Size: 2150 mm (L) × 1050 mm (W).
• Adjustable Height: 460–780 mm.
• Suitable Mattress Size: 1980 mm (L) × 900 mm (W).
